Product Category:[OEM Network Cable]
- Product Name:CCAM CCA CCS OEM lan cable
- Product Details：
Cable Construction:
Item No.: 1 | 2 | 3
Conductor Dimension: 0.50mm | 0.51mm | 0.51mm
Core Dimension: 0.91mm | 0.92mm | 0.92mm
No. Of Pairs: 4 | 25 | 25
Nom. OD: 5.3mm | 14.0mm | 13.0mm
Type of Jacket: PVC/PE PVC/PE PVC/PE -
CCAM CCA CCS OEM lan cable
Product Description:
Reference standard: UL444, TIA/EIA-568A Bare solid copper conductor ROHS complied PVC, PE or LSOH jacket Complies to TIA/EIA-568B&ISO/IEC 11801
Application: Ethernet, 10 Base-T, 100 Base-T4, ATM, TP-PMD Seppch, Telephone, Multimedia, Trunk Wiring
Cable Construction:
Item No.: 1 | 2 | 3
Conductor Dimension: 0.50mm | 0.51mm | 0.51mm
Core Dimension: 0.91mm | 0.92mm | 0.92mm
No. Of Pairs: 4 | 25 | 25
Nom. OD: 5.3mm | 14.0mm | 13.0mm
Type of Jacket: PVC/PE PVC/PE PVC/PE
Electrical Characteristics:
Frequency(MHz): 1 | 4 | 10 | 20 | 31.25 | 62.5 | 100
Attenuation(dB/100m): 2.0 | 4.1 | 6.5 | 9.3 | 11.7 | 17.0 | 22.0
Impedance(ohm): 100 | 100 | 100 | 100 | 100 | 100 | 100
Return Loss(dB): 17 | 20 | 22 | 20 | 18 | 16 | 15
NEXT(dB/100m): 62.3 | 53.3 | 47.3 | 42.8 | 39.9 | 35.4 | 32.3
ELFEXT: (dB/100m): 61 | 49 | 41 | 35 | 31 | 25 | 21 PS
NEXT(dB/100m): 62.3 | 53.3 | 47.3 | 42.8 | 39.9 | 35.4 | 32.3 PS
ELFEXT: (dB/100m): 61 | 49 | 41 | 35 | 31 | 25 | 21

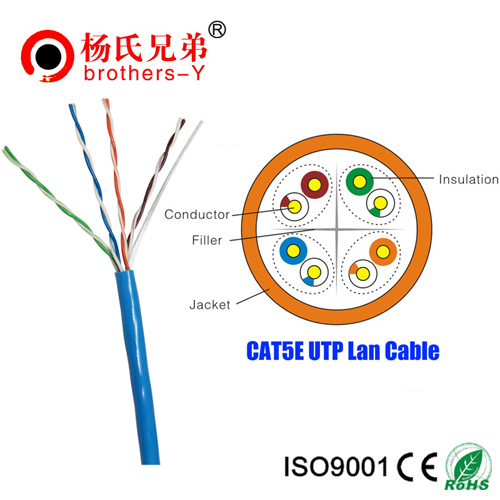

Structure:
Conductor: Solid/stranded wire CU/CCA/CCS
AWG: 24/26/28AWG
Twisted pair: 4
Shield: Pe-Tape + Al foil
Drain wire: Solid Tinned copper
Insulation: HDPE
Jacket: PVC
Rip cord: Per request
Rated Temperature: 60cF, 75 cF, (140 TF, 167 TF)
Standard:
UL accepted TIA/ EIA 568A /EIA 568B, ISO/IEC 11801
Flame resistance level:
CMX. CM, MP, CMG, MPG, CMR, MPR
Packing:
305meters/roll/box, 3box/carton;
Weight: 6.8~8.8KG/Box
Other:
Applicable to network for audio and (ISDN), 10Base-T, 100 Base-T4, 100Base-TX, 100VG-Any LAN, 155Mbps ATM, 622Mbps ATM TPDDI Fast speed and Extreme Networks.
OEM is available, we can give you competitive price , high quality products and excellent service through our cooperation.
.jpg){kind=small}
Founded in 2002, Shenzhen Brother Young Development Co., Ltd. enjoys a history of 10 years' development and has been upholding the philosophy of "sincere service and quality first", which wins a good reputation in this line of business; After 10 years of constant effort and persistence, it has developed into a modern high-tech enterprise which integrates scientific research, manufacturing, and marketing. Our main products are high-tech cable, including CAT5E and CAT6 network cable, coax cable, optic fiber, multi pair telephone cable, other relative network accessories.
At present, our products are mainly exported to European and American. Our headquarter is in Wulian Community in Longgang of Shenzhen with a strong team. We own two factories in Jiexi city and Shenzhen city in Guangdong Province respectively. The factories cover an area of nearly 10,000 square meters. At present, our main brand is: brothers-Y. We have introduced advanced production line in factories, and to satisfy the market demand, our products vary from high and medium to low class for the customers to choose from. Over the years, Shenzhen Brothers Young Development Co., LTD has won high praise and trust from customers both at home and abroad with its superior quality, competitive price and sincere service. Our products have got authentication from multiple quality systems such as ISO9001:2008 and UL, ROSH. In 2010. our company was appraised one of top ten advisory of Shenzhen by Alibaba. We always adhere to the "high standard, high requirement" for product requirements, strict in each link of production; ensure the quality of company product reach the advanced level of the industry; Brother Young sincerely welcome friends visit, look forward to your cooperation!
In July, 2006, brothers-Y Network Cable has become the only supplier for SHENZHEN TELECOM.
In September, 2006, brothers-Y Coaxial cable has become one of qualified suppliers for CHINA BROADCASING AND TV.
In 2008, brothers-Y big pairs cable, like 50 pairs, 100 pairs,200pairs,telephone cable have successfully entered into CHINA TELECOM supplier.
From 2009 to 2010, brothers-Y has been a successful cable supplier for HUAWEI, FOXCONN, CITIC, CHINA UNICOM, CHINA MOBILE, and other famous enterprises etc.
