11 years of professional supply  Cable and wire manufacturer!

Product Category:[CAT5E Cable]

  • Product Name:Cat5e outdoor bulk copper cable
  • Product Details:Conductor material: BC/CCA/CCAU optional Conductor size:24AWG/26AWG/28AWG optional Flammability grade:CM/CMR/CMP/CMX
    • Contact Supplier:sales3@brothers-ycable.net
    • Conductor material:BC/CCA/CCAU optional
    • Conductor size:24AWG/26AWG/28AWG optional
    • Rated temperature::60℃,75℃,90℃
    • Installation temperature::-30℃~+50℃
    • Minimum bending radius:4D
    • Payment Terms:T/T, Western Union,L/C

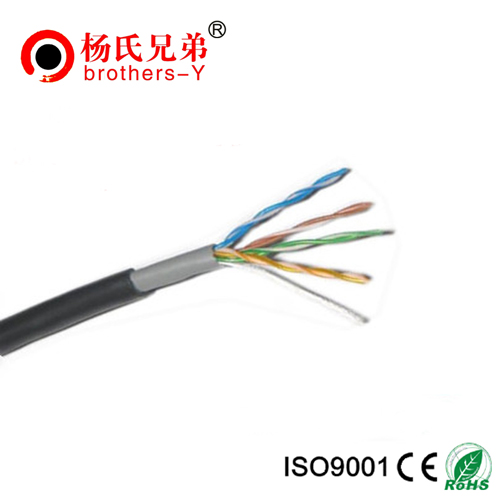

 Cat5e outdoor bulk copper cable

Product Description:
Conductor material: BC/CCA/CCAU optional
Conductor size:24AWG/26AWG/28AWG optional
Flammability grade:CM/CMR/CMP/CMX
Rated temperature: 60℃,75℃,90℃
Reference Standard: UL444,UL1581
Bare solid copper conductor
RoHS Complied PVC,PE or LSZH Jacket
Complies to TIA/EIA-568-c.2&ISO/IEC 11801
Installation temperature: -30℃~+50℃
Minimum bending radius: >4p  4D



Frequency

MHz

Impedance

ohm

RL

dB

Attenuation

dB/100m

NEXT

dB/100m

ELFEXT

dB/100m

PS NEXT

dB/100m

PS  ELFEXT

dB/100m

1

100±15

20

2.0

65.3

63.8

62.3

60.8

4

23

4.1

56.3

51.7

53.3

48.7

8

25

5.8

51.8

45.7

48.8

42.7

10

25

6.5

50.3

43.8

47.3

40.8

16

25

8.2

47.3

39.7

44.2

36.7

20

25

9.3

48.5

37.7

42.8

34.7

25

24

10.4

44.3

35.8

41.3

32.8

31.25

24

11.6

42.9

33.9

39.9

30.9

62.5

22

17.0

38.4

27.8

35.4

24.8

100

20

22.0

35.3

23.8

32.3

20.8



Application:

1. Computer Network Cabling Project.
2. Broadband Network Communication.
3 .Digital ISDN  Network and ATM 155Mbps Network
4. 100 Base-TX,100 Base-T4, 100VG-AnyLAN,1000Base-T Gigabit Ethernet Network
5. Audio and Data Transmission





Founded in 2002, Shenzhen Brother Young Development Co., Ltd. enjoys a history of 10 years' development and has been upholding the philosophy of "sincere service and quality first", which wins a good reputation in this line of business; After 10 years of constant effort and persistence, it has developed into a modern high-tech enterprise which integrates scientific research, manufacturing, and marketing. Our main products are high-tech cable, including CAT5E and CAT6 network cable, coax cable, optic fiber, multi pair telephone cable, other relative network accessories.



Brothers Young



At present, our products are mainly exported to European and American. Our headquarter is in Wulian Community in Longgang of Shenzhen with a strong team. We own two factories in Jiexi city and Shenzhen city in Guangdong Province respectively. The factories cover an area of nearly 10,000 square meters. At present, our main brand is: brothers-Y. We have introduced advanced production line in factories, and to satisfy the market demand, our products vary from high and medium to low class for the customers to choose from. Over the years, Shenzhen Brothers Young Development Co., LTD has won high praise and trust from customers both at home and abroad with its superior quality, competitive price and sincere service. Our products have got authentication from multiple quality systems such as ISO9001:2008 and UL, ROSH. In 2010. our company was appraised one of top ten advisory of Shenzhen by Alibaba. We always adhere to the "high standard, high requirement" for product requirements, strict in each link of production; ensure the quality of company product reach the advanced level of the industry; Brother Young sincerely welcome friends visit, look forward to your cooperation!



In July, 2006, brothers-Y Network Cable has become the only supplier for SHENZHEN TELECOM.
In September, 2006, brothers-Y Coaxial cable has become one of qualified suppliers for CHINA BROADCASING AND TV.
In 2008, brothers-Y big pairs cable, like 50 pairs, 100 pairs,200pairs,telephone cable have successfully entered into CHINA TELECOM supplier.
From 2009 to 2010, brothers-Y has been a successful cable supplier for HUAWEI, FOXCONN, CITIC, CHINA UNICOM, CHINA MOBILE, and other famous enterprises etc.
